M5Display.cpp File Reference

#include "../../Defines.h"
#include "M5Display.h"
#include "LED_DisPlay.h"

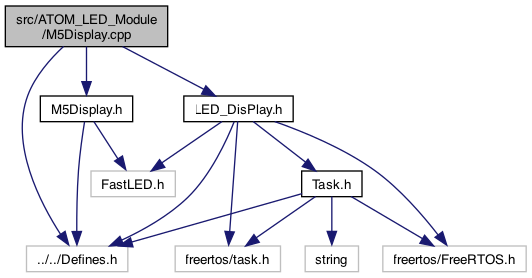

Include dependency graph for M5Display.cpp:

Go to the source code of this file.

Macros
#define	MAX_COLORS   5

Functions
void	setup_M5Display ()
	the setup() no loop() More...
void	animation (uint8_t *buffptr, uint8_t amspeed, uint8_t ammode, int64_t amcount)
void	displaybuff (uint8_t *buffptr, int8_t offsetx, int8_t offsety)
void	setBrightness (uint8_t brightness)
void	drawpix (uint8_t xpos, uint8_t ypos, CRGB Color)
void	drawpix (uint8_t Number, CRGB Color)
void	clear ()
char *	colorName (CRGB Color)
void	fillpix (CRGB Color)
	color the button light More...
CRGB	getRandomColor ()
	7.24.25 return a (semi) random color More...

Variables
LED_DisPlay	_dis
	the LED DIsplay Object More...
boolean	_M5DisplaySetup = false
long	_randomColorIndex = 0

Macro Definition Documentation

MAX_COLORS

#define MAX_COLORS   5

Definition at line 76 of file M5Display.cpp.

Function Documentation

animation()

void animation	(	uint8_t *	buffptr,
		uint8_t	amspeed,
		uint8_t	ammode,
		int64_t	amcount
	)

Definition at line 24 of file M5Display.cpp.

Here is the call graph for this function:

clear()

void clear

(

)

Definition at line 44 of file M5Display.cpp.

Here is the call graph for this function:

colorName()

char * colorName

(

CRGB

Color

)

Definition at line 49 of file M5Display.cpp.

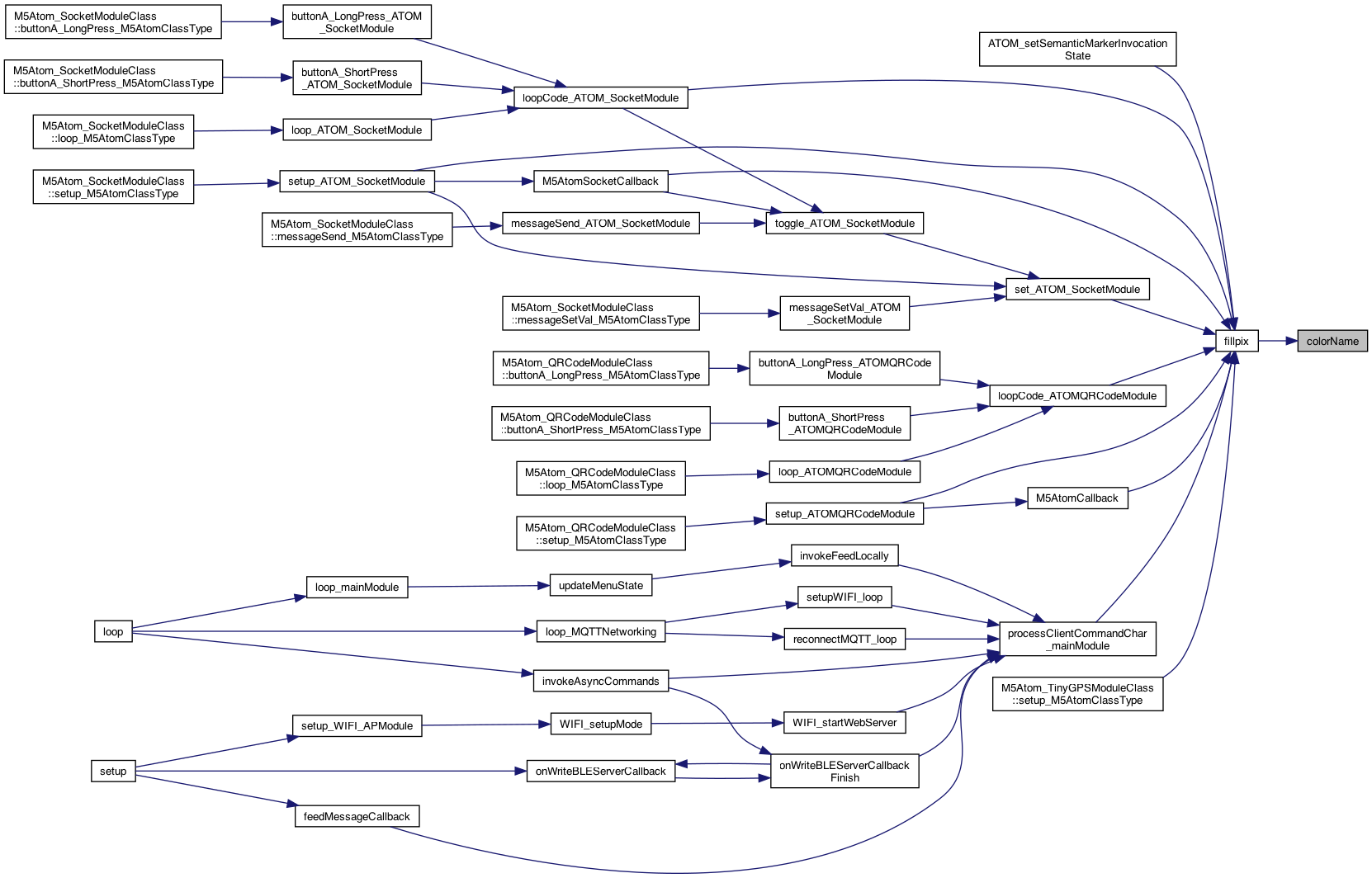

Here is the caller graph for this function:

displaybuff()

void displaybuff	(	uint8_t *	buffptr,
		int8_t	offsetx,
		int8_t	offsety
	)

Definition at line 28 of file M5Display.cpp.

Here is the call graph for this function:

drawpix() [1/2]

void drawpix	(	uint8_t	Number,
		CRGB	Color
	)

Definition at line 40 of file M5Display.cpp.

Here is the call graph for this function:

drawpix() [2/2]

void drawpix	(	uint8_t	xpos,
		uint8_t	ypos,
		CRGB	Color
	)

Definition at line 36 of file M5Display.cpp.

Here is the call graph for this function:

fillpix()

void fillpix

(

CRGB

Color

)

color the button light

Definition at line 65 of file M5Display.cpp.

Here is the call graph for this function:

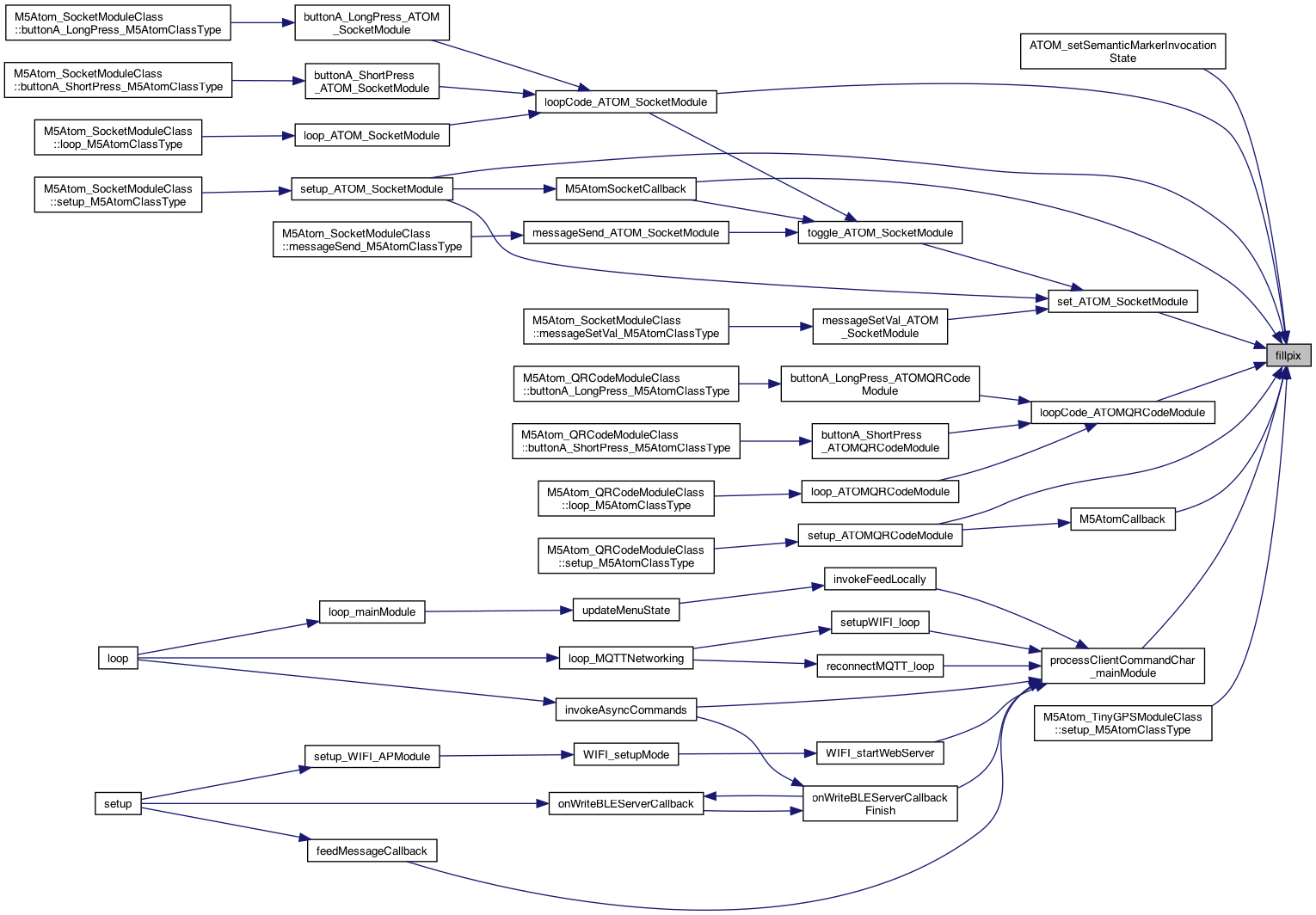

Here is the caller graph for this function:

getRandomColor()

CRGB getRandomColor

(

)

7.24.25 return a (semi) random color

Definition at line 78 of file M5Display.cpp.

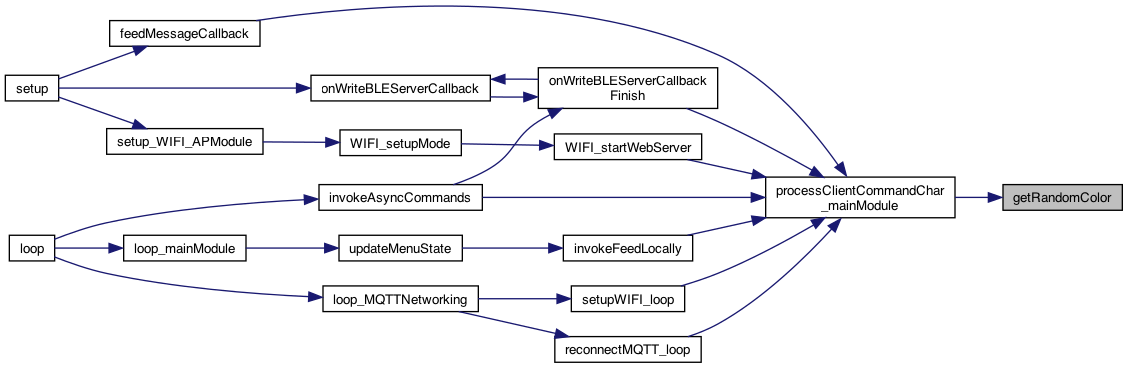

Here is the caller graph for this function:

setBrightness()

void setBrightness

(

uint8_t

brightness

)

Definition at line 32 of file M5Display.cpp.

Here is the call graph for this function:

setup_M5Display()

void setup_M5Display

(

)

the setup() no loop()

CRGB is RGB https://github.com/FastLED/FastLED/wiki/Pixel-reference https://github.com/FastLED/FastLED/wiki/RGBSet-Reference https://gist.github.com/chemdoc77?page=3 https://github.com/marmilicious/FastLED_examples/blob/master/blink_variations.ino@see https://community.m5stack.com/topic/5550/atom-lite-with-different-led-controllers-for-internal-led/7

Definition at line 11 of file M5Display.cpp.

Here is the call graph for this function:

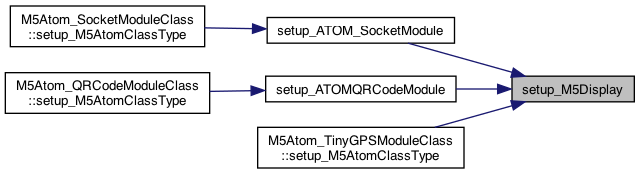

Here is the caller graph for this function:

Variable Documentation

_dis

LED_DisPlay _dis

the LED DIsplay Object

Definition at line 8 of file M5Display.cpp.

_M5DisplaySetup

boolean _M5DisplaySetup = false

Definition at line 9 of file M5Display.cpp.

_randomColorIndex

long _randomColorIndex = 0

Definition at line 75 of file M5Display.cpp.
