M5Display.h File Reference

#include "../../Defines.h"
#include <FastLED.h>

Include dependency graph for M5Display.h:

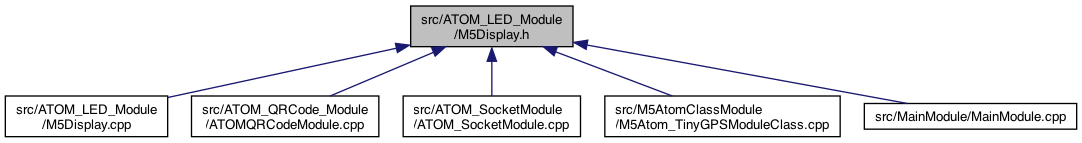

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	L_RED   (CRGB) 0xff0000
	colors More...
#define	L_GREEN   (CRGB) 0x00ff00
#define	L_BLUE   (CRGB) 0x0000ff
#define	L_WHITE   (CRGB) 0xe0e0e0
#define	L_YELLOW   (CRGB) 0xfff000

Functions
void	setup_M5Display ()
	the setup() no loop() More...
void	animation (uint8_t *buffptr, uint8_t amspeed, uint8_t ammode, int64_t amcount=-1)
void	displaybuff (uint8_t *buffptr, int8_t offsetx=0, int8_t offsety=0)
void	setBrightness (uint8_t brightness)
void	drawpix (uint8_t xpos, uint8_t ypos, CRGB Color)
void	drawpix (uint8_t Number, CRGB Color)
void	clear ()
void	fillpix (CRGB Color)
	color the button light More...
CRGB	getRandomColor ()
	7.24.25 return a (semi) random color More...

Macro Definition Documentation

L_BLUE

#define L_BLUE   (CRGB) 0x0000ff

Definition at line 38 of file M5Display.h.

L_GREEN

#define L_GREEN   (CRGB) 0x00ff00

Definition at line 37 of file M5Display.h.

L_RED

#define L_RED   (CRGB) 0xff0000

colors

Definition at line 36 of file M5Display.h.

L_WHITE

#define L_WHITE   (CRGB) 0xe0e0e0

Definition at line 39 of file M5Display.h.

L_YELLOW

#define L_YELLOW   (CRGB) 0xfff000

Definition at line 40 of file M5Display.h.

Function Documentation

animation()

void animation	(	uint8_t *	buffptr,
		uint8_t	amspeed,
		uint8_t	ammode,
		int64_t	amcount = -1
	)

Definition at line 24 of file M5Display.cpp.

Here is the call graph for this function:

clear()

void clear

(

)

Definition at line 44 of file M5Display.cpp.

Here is the call graph for this function:

displaybuff()

void displaybuff	(	uint8_t *	buffptr,
		int8_t	offsetx = 0,
		int8_t	offsety = 0
	)

Definition at line 28 of file M5Display.cpp.

Here is the call graph for this function:

drawpix() [1/2]

void drawpix	(	uint8_t	Number,
		CRGB	Color
	)

Definition at line 40 of file M5Display.cpp.

Here is the call graph for this function:

drawpix() [2/2]

void drawpix	(	uint8_t	xpos,
		uint8_t	ypos,
		CRGB	Color
	)

Definition at line 36 of file M5Display.cpp.

Here is the call graph for this function:

fillpix()

void fillpix

(

CRGB

Color

)

color the button light

Definition at line 65 of file M5Display.cpp.

Here is the call graph for this function:

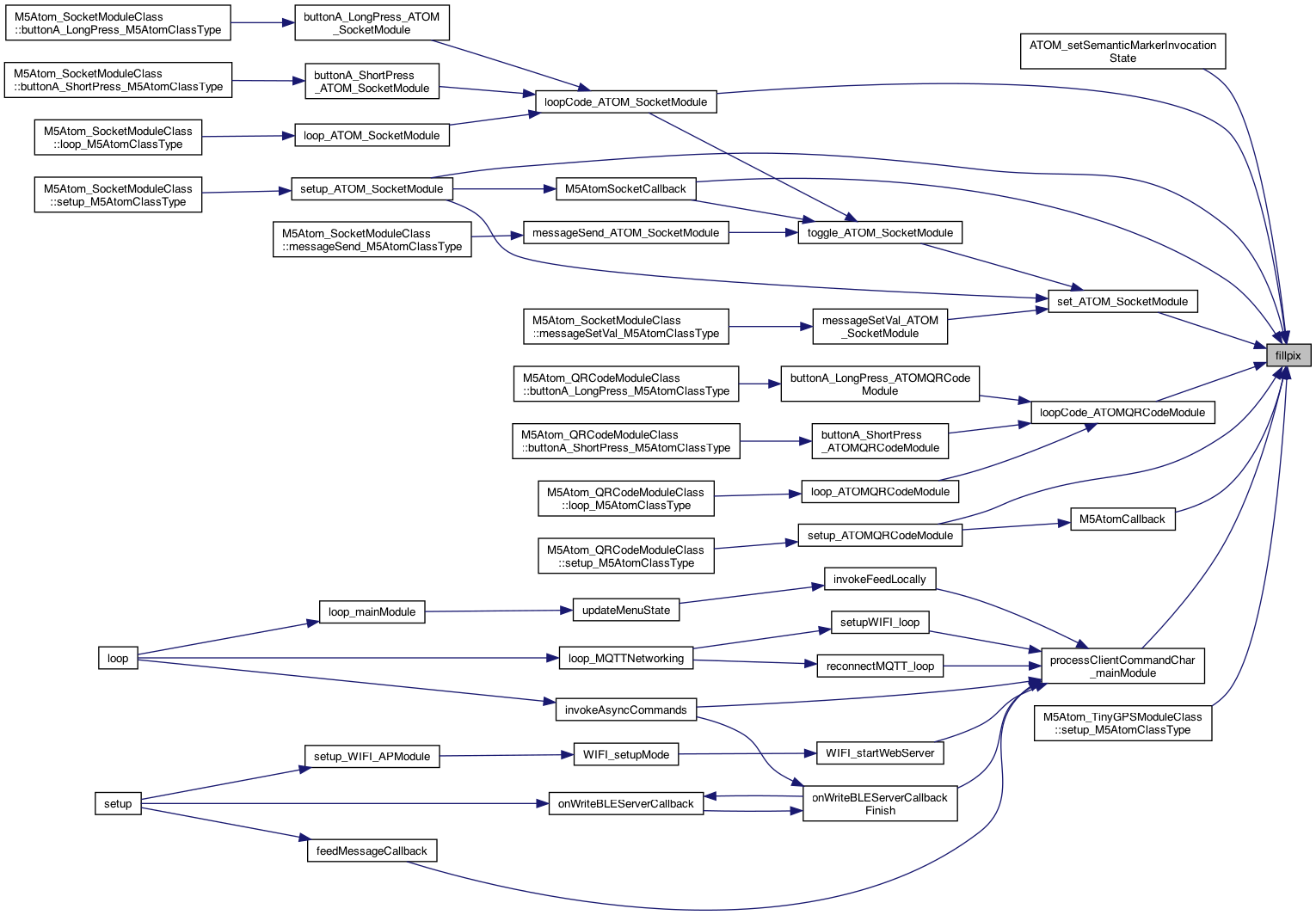

Here is the caller graph for this function:

getRandomColor()

CRGB getRandomColor

(

)

7.24.25 return a (semi) random color

Definition at line 78 of file M5Display.cpp.

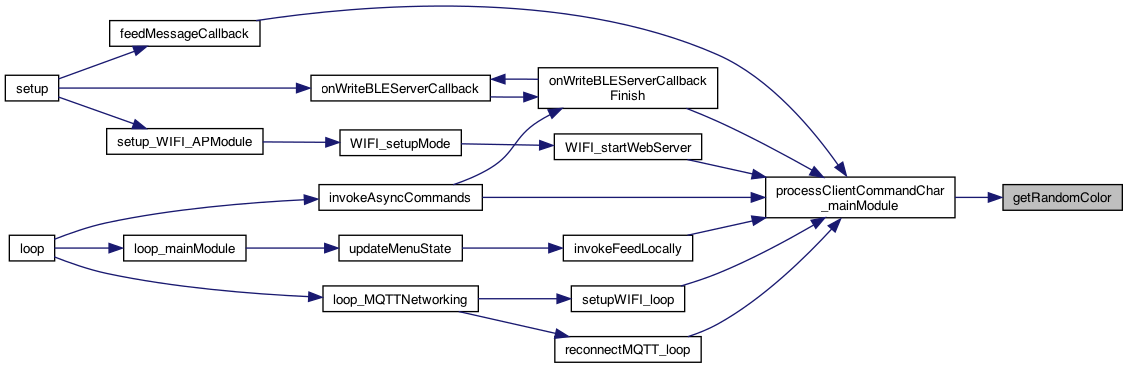

Here is the caller graph for this function:

setBrightness()

void setBrightness

(

uint8_t

brightness

)

Definition at line 32 of file M5Display.cpp.

Here is the call graph for this function:

setup_M5Display()

void setup_M5Display

(

)

the setup() no loop()

CRGB is RGB https://github.com/FastLED/FastLED/wiki/Pixel-reference https://github.com/FastLED/FastLED/wiki/RGBSet-Reference https://gist.github.com/chemdoc77?page=3 https://github.com/marmilicious/FastLED_examples/blob/master/blink_variations.ino@see https://community.m5stack.com/topic/5550/atom-lite-with-different-led-controllers-for-internal-led/7

Definition at line 11 of file M5Display.cpp.

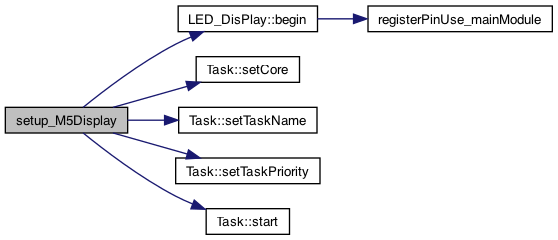

Here is the call graph for this function:

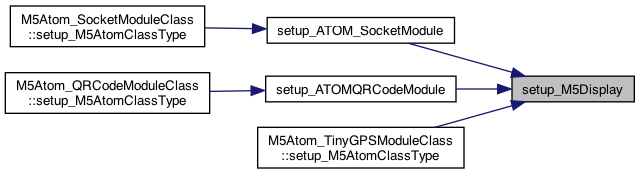

Here is the caller graph for this function:
