MultipleSatellite Class Reference

#include <MultipleSatellite.h>

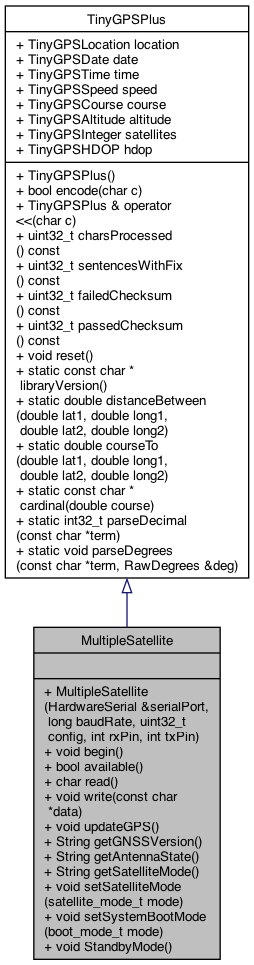

Inheritance diagram for MultipleSatellite:

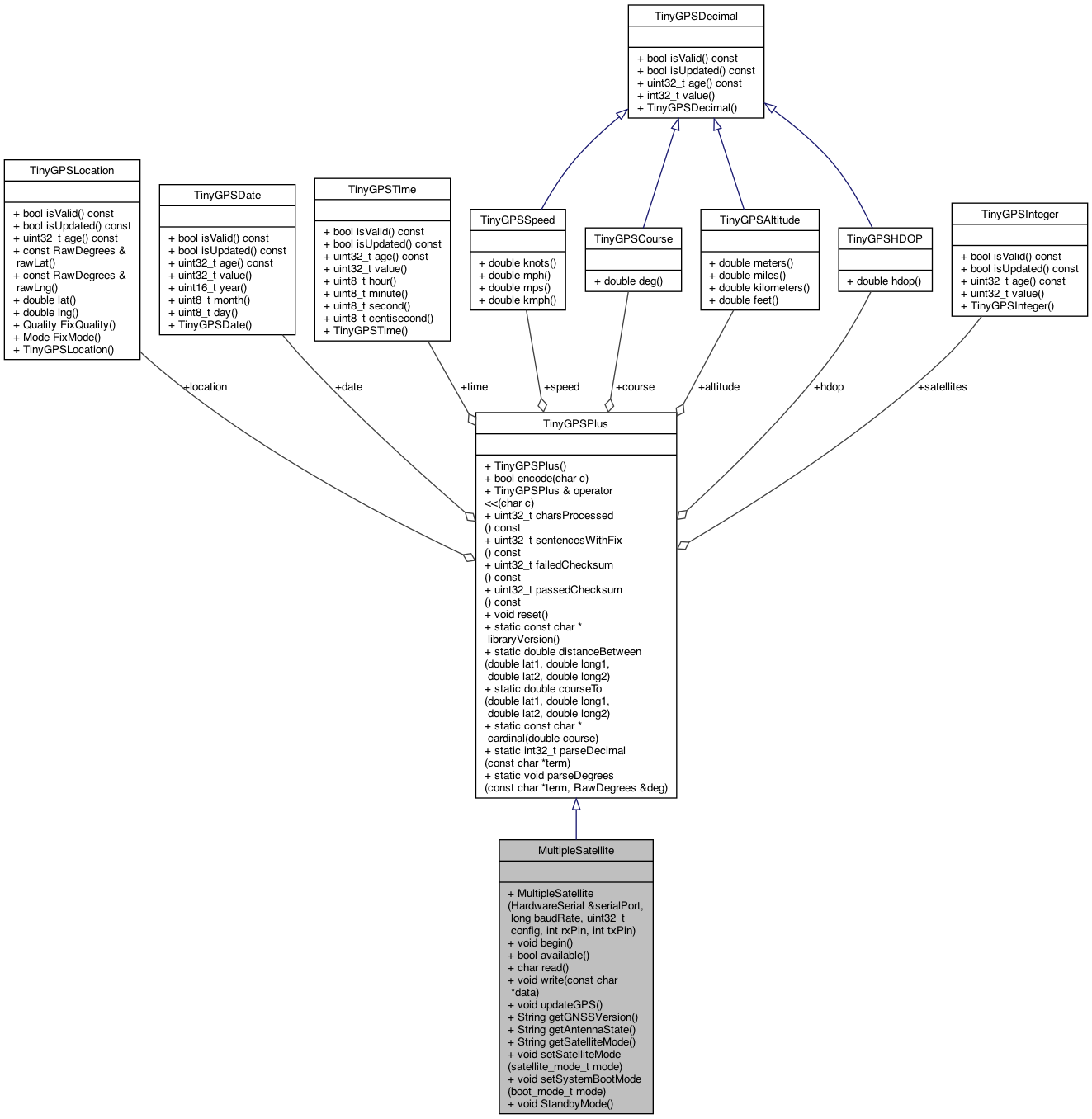

Collaboration diagram for MultipleSatellite:

Public Member Functions
	MultipleSatellite (HardwareSerial &serialPort, long baudRate, uint32_t config, int rxPin, int txPin)
void	begin ()
bool	available ()
char	read ()
void	write (const char *data)
void	updateGPS ()
String	getGNSSVersion ()
String	getAntennaState ()
String	getSatelliteMode ()
void	setSatelliteMode (satellite_mode_t mode)
void	setSystemBootMode (boot_mode_t mode)
void	StandbyMode ()
Public Member Functions inherited from TinyGPSPlus
	TinyGPSPlus ()
bool	encode (char c)
TinyGPSPlus &	operator<< (char c)
uint32_t	charsProcessed () const
uint32_t	sentencesWithFix () const
uint32_t	failedChecksum () const
uint32_t	passedChecksum () const
void	reset ()

Additional Inherited Members
Static Public Member Functions inherited from TinyGPSPlus
static const char *	libraryVersion ()
static double	distanceBetween (double lat1, double long1, double lat2, double long2)
static double	courseTo (double lat1, double long1, double lat2, double long2)
static const char *	cardinal (double course)
static int32_t	parseDecimal (const char *term)
static void	parseDegrees (const char *term, RawDegrees &deg)
Public Attributes inherited from TinyGPSPlus
TinyGPSLocation	location
TinyGPSDate	date
TinyGPSTime	time
TinyGPSSpeed	speed
TinyGPSCourse	course
TinyGPSAltitude	altitude
TinyGPSInteger	satellites
TinyGPSHDOP	hdop

Detailed Description

Definition at line 31 of file MultipleSatellite.h.

Constructor & Destructor Documentation

MultipleSatellite()

MultipleSatellite::MultipleSatellite ( HardwareSerial &  serialPort, long  baudRate, uint32_t  config, int  rxPin, int  txPin  )

inline

Definition at line 33 of file MultipleSatellite.h.

Member Function Documentation

available()

bool MultipleSatellite::available ( )

inline

Definition at line 42 of file MultipleSatellite.h.

Here is the caller graph for this function:

begin()

void MultipleSatellite::begin ( )

inline

Definition at line 37 of file MultipleSatellite.h.

getAntennaState()

String MultipleSatellite::getAntennaState ( )

inline

Definition at line 71 of file MultipleSatellite.h.

getGNSSVersion()

String MultipleSatellite::getGNSSVersion ( )

inline

Definition at line 65 of file MultipleSatellite.h.

Here is the call graph for this function:

getSatelliteMode()

String MultipleSatellite::getSatelliteMode ( )

inline

Definition at line 76 of file MultipleSatellite.h.

Here is the call graph for this function:

read()

char MultipleSatellite::read ( )

inline

Definition at line 47 of file MultipleSatellite.h.

Here is the caller graph for this function:

setSatelliteMode()

void MultipleSatellite::setSatelliteMode ( satellite_mode_t  mode )

inline

Definition at line 95 of file MultipleSatellite.h.

Here is the call graph for this function:

setSystemBootMode()

void MultipleSatellite::setSystemBootMode ( boot_mode_t  mode )

inline

Definition at line 118 of file MultipleSatellite.h.

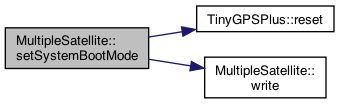

Here is the call graph for this function:

StandbyMode()

void MultipleSatellite::StandbyMode ( )

inline

Definition at line 145 of file MultipleSatellite.h.

Here is the call graph for this function:

updateGPS()

void MultipleSatellite::updateGPS ( )

inline

Definition at line 57 of file MultipleSatellite.h.

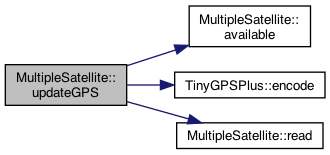

Here is the call graph for this function:

Here is the caller graph for this function:

write()

void MultipleSatellite::write ( const char *  data )

inline

Definition at line 52 of file MultipleSatellite.h.

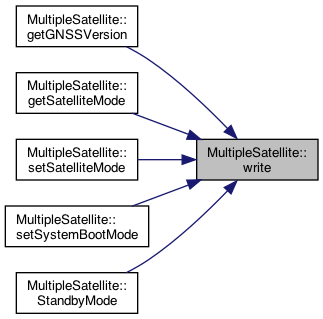

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/TinyGPS/MultipleSatellite.h
