An concrete class. More...

#include <ULN2003_StepperClass.h>

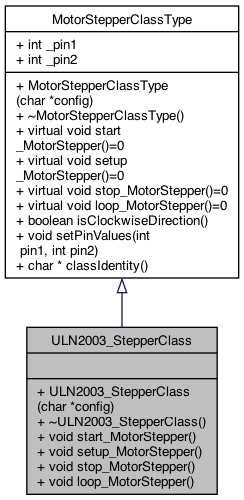

Inheritance diagram for ULN2003_StepperClass:

Collaboration diagram for ULN2003_StepperClass:

Public Member Functions
	ULN2003_StepperClass (char *config)
	constructor More...

	~ULN2003_StepperClass ()
	destructor More...

void	start_MotorStepper ()
	starts the PTStepper More...

void	setup_MotorStepper ()
	setup the PTStepper More...

void	stop_MotorStepper ()
	stops motor More...

void	loop_MotorStepper ()
	loop the PTStepper (so timer can run) More...

Public Member Functions inherited from MotorStepperClassType
	MotorStepperClassType (char *config)
	saves the identity (OOPS.. not working.. it's shared by all class instances.. so last one wins.. More...

	~MotorStepperClassType ()
	destructor More...

virtual void	start_MotorStepper ()=0

virtual void	setup_MotorStepper ()=0
	setup the PTStepper More...

virtual void	stop_MotorStepper ()=0
	stop the motor More...

virtual void	loop_MotorStepper ()=0
	loop the PTStepper (so timer can run) More...

boolean	isClockwiseDirection ()
	returns if clockwise More...

void	setPinValues (int pin1, int pin2)

char *	classIdentity ()

Additional Inherited Members
Public Attributes inherited from MotorStepperClassType
int	_pin1 = 0

int	_pin2 = 0
	pin2 More...

Detailed Description

An concrete class.

Definition at line 16 of file ULN2003_StepperClass.h.

Constructor & Destructor Documentation

◆ ULN2003_StepperClass()

ULN2003_StepperClass::ULN2003_StepperClass ( char * config )

constructor

Definition at line 43 of file ULN2003_StepperClass.cpp.

◆ ~ULN2003_StepperClass()

ULN2003_StepperClass::~ULN2003_StepperClass ( )

destructor

Member Function Documentation

◆ loop_MotorStepper()

void ULN2003_StepperClass::loop_MotorStepper ( )

virtual

loop the PTStepper (so timer can run)

Implements MotorStepperClassType.

Definition at line 169 of file ULN2003_StepperClass.cpp.

Here is the call graph for this function:

◆ setup_MotorStepper()

void ULN2003_StepperClass::setup_MotorStepper ( )

virtual

setup the PTStepper

These are called from StepperModule Prepare motor controller

FIRST: normalize in case use goofed up, especially 0 grab this value.

grab this value.

create stepper motor

Set motor speed (RPM) 15 is default...

5.3.25 trying to figure out the PIN use

Implements MotorStepperClassType.

Definition at line 74 of file ULN2003_StepperClass.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ start_MotorStepper()

void ULN2003_StepperClass::start_MotorStepper ( )

virtual

starts the PTStepper

Data members of class Generic config info .. specific the the sensor type

This will advance the stepper clockwise once by the angle specified in SetupStepper. Example 16 pockets in UNO is 22.5 degrees This is the FEED message .. the comments mention the Stepper Motor .. which this isn't

5.15.25 try the async CLICK click call 5.26.25 SYNC version

FIRST: normalize in case use goofed up, especially 0 grab this value.

grab this value.

create stepper motor 8.14.25 Setting the Speed and Steps each time.. Set motor speed (RPM) 15 is default...

Implements MotorStepperClassType.

Definition at line 114 of file ULN2003_StepperClass.cpp.

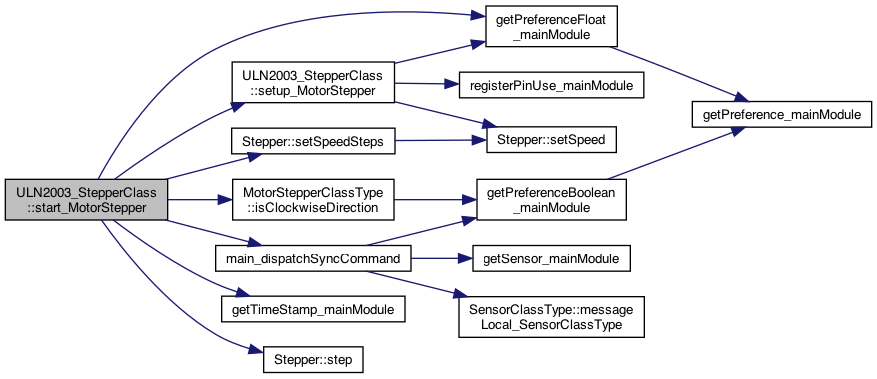

Here is the call graph for this function:
