#include "DCMotorStepperClass.h"
#include "StepperModule.h"

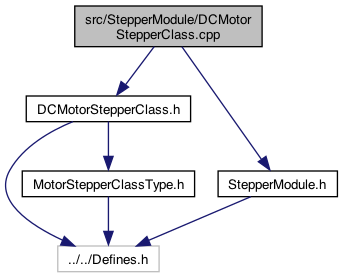

Include dependency graph for DCMotorStepperClass.cpp:

Macros
#define	MOTOR_IN1 13
	from Orion's small program 3.16.25 More...

#define	MOTOR_IN2 12

#define	BUZZER_IN1 14

#define	BUZZER_IN2 27

#define	NUM_PINS 2

#define	NEW_CODE_HERE

#define	BUZZER_CODE

Functions
void	clearPins_DCMotorStepper ()

Variables
TimerDelayClass *	_timerDelayClass_DCMotorStepperClass
	DCMotorStepper More...

float	_delaySeconds_DCMotorStepper_setting = 0.5
	default .. this could be set via Preferences (TODO) More...

int	_pins_DCMotorStepperClass [NUM_PINS]

Macro Definition Documentation

◆ BUZZER_CODE

#define BUZZER_CODE

◆ BUZZER_IN1

#define BUZZER_IN1 14

Definition at line 34 of file DCMotorStepperClass.cpp.

◆ BUZZER_IN2

#define BUZZER_IN2 27

Definition at line 35 of file DCMotorStepperClass.cpp.

◆ MOTOR_IN1

#define MOTOR_IN1 13

from Orion's small program 3.16.25

Definition at line 32 of file DCMotorStepperClass.cpp.

◆ MOTOR_IN2

#define MOTOR_IN2 12

Definition at line 33 of file DCMotorStepperClass.cpp.

◆ NEW_CODE_HERE

#define NEW_CODE_HERE

◆ NUM_PINS

#define NUM_PINS 2

Definition at line 37 of file DCMotorStepperClass.cpp.

Function Documentation

◆ clearPins_DCMotorStepper()

void clearPins_DCMotorStepper ( )

This replaces the following, when clearPins() called

pinMode(MOTOR_IN1, OUTPUT); pinMode(MOTOR_IN2, OUTPUT); pinMode(BUZZER_IN1, OUTPUT); pinMode(BUZZER_IN2, OUTPUT); digitalWrite(MOTOR_IN1, LOW); digitalWrite(MOTOR_IN2, LOW); digitalWrite(BUZZER_IN1, LOW); digitalWrite(BUZZER_IN2, LOW); #endif

Definition at line 58 of file DCMotorStepperClass.cpp.

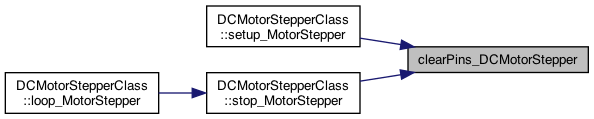

Here is the caller graph for this function:

Variable Documentation

◆ _delaySeconds_DCMotorStepper_setting

float _delaySeconds_DCMotorStepper_setting = 0.5

default .. this could be set via Preferences (TODO)

Definition at line 18 of file DCMotorStepperClass.cpp.

◆ _pins_DCMotorStepperClass

int _pins_DCMotorStepperClass[NUM_PINS]

Initial value:

{
    MOTOR_IN1,
    MOTOR_IN2
}

Definition at line 39 of file DCMotorStepperClass.cpp.

◆ _timerDelayClass_DCMotorStepperClass

TimerDelayClass* _timerDelayClass_DCMotorStepperClass

DCMotorStepper

create instance of the timer class

Definition at line 15 of file DCMotorStepperClass.cpp.
