An concrete class. More...

#include <L9110S_DCStepperClass.h>

Inheritance diagram for L9110S_DCStepperClass:

Collaboration diagram for L9110S_DCStepperClass:

Public Member Functions
	L9110S_DCStepperClass (char *config)
	constructor More...

	~L9110S_DCStepperClass ()
	destructor More...

void	start_MotorStepper ()
	starts the PTStepper More...

void	setup_MotorStepper ()
	setup the PTStepper More...

void	stop_MotorStepper ()
	stops motor More...

void	loop_MotorStepper ()
	loop the PTStepper (so timer can run) More...

Public Member Functions inherited from MotorStepperClassType
	MotorStepperClassType (char *config)
	saves the identity (OOPS.. not working.. it's shared by all class instances.. so last one wins.. More...

	~MotorStepperClassType ()
	destructor More...

virtual void	start_MotorStepper ()=0

virtual void	setup_MotorStepper ()=0
	setup the PTStepper More...

virtual void	stop_MotorStepper ()=0
	stop the motor More...

virtual void	loop_MotorStepper ()=0
	loop the PTStepper (so timer can run) More...

boolean	isClockwiseDirection ()
	returns if clockwise More...

void	setPinValues (int pin1, int pin2)

char *	classIdentity ()

Additional Inherited Members
Public Attributes inherited from MotorStepperClassType
int	_pin1 = 0

int	_pin2 = 0
	pin2 More...

Detailed Description

An concrete class.

Definition at line 16 of file L9110S_DCStepperClass.h.

Constructor & Destructor Documentation

◆ L9110S_DCStepperClass()

L9110S_DCStepperClass::L9110S_DCStepperClass ( char * config )

constructor

Definition at line 22 of file L9110S_DCStepperClass.cpp.

◆ ~L9110S_DCStepperClass()

L9110S_DCStepperClass::~L9110S_DCStepperClass ( )

destructor

Member Function Documentation

◆ loop_MotorStepper()

void L9110S_DCStepperClass::loop_MotorStepper ( )

virtual

loop the PTStepper (so timer can run)

user timer class instance

Implements MotorStepperClassType.

Definition at line 129 of file L9110S_DCStepperClass.cpp.

Here is the call graph for this function:

◆ setup_MotorStepper()

void L9110S_DCStepperClass::setup_MotorStepper ( )

virtual

setup the PTStepper

These are called from StepperModule Prepare motor controller

7.9.25 if the pin was set use it otherwise use the hard coded values

set output pins

stop the motor (or something) THis seems to be working.. the LOW worked sometimes..

5.3.25 trying to figure out the PIN use

Implements MotorStepperClassType.

Definition at line 57 of file L9110S_DCStepperClass.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ start_MotorStepper()

void L9110S_DCStepperClass::start_MotorStepper ( )

virtual

starts the PTStepper

Data members of class Generic config info .. specific the the sensor type

This will advance the stepper clockwise once by the angle specified in SetupStepper. Example 16 pockets in UNO is 22.5 degrees This is the FEED message .. the comments mention the Stepper Motor .. which this isn't

5.15.25 try the async CLICK click call 5.26.25 SYNC version

grab this value.

start the delay.. (which at .5 might not be needed...)

Implements MotorStepperClassType.

Definition at line 92 of file L9110S_DCStepperClass.cpp.

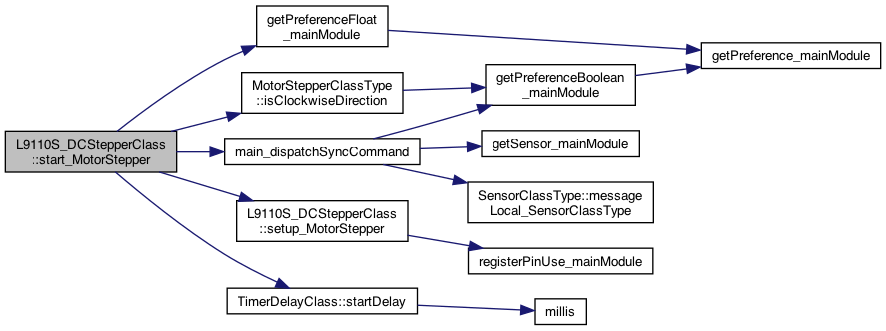

Here is the call graph for this function:
